Πέμπτη, 12 Σεπτεμβρίου 2013

CTEK: MXS 5.0 Test & Charge, Comfort Indicator Panel and Comfort Indicator Eyelet

CTEK:

MXS 5.0 Test & Charge,
Comfort Indicator Panel and
Comfort Indicator Eyelet

Hyosung Aquila CTEK MXS 5.0 Test & Charge
Hyosung Aquila CTEK MXS 5.0 Test & Charge,

Hyosung Aquila CTEK MXS 5.0 Test & Charge,

Hyosung Aquila CTEK MXS 5.0 Test & Charge,

Hyosung Aquila CTEK MXS 5.0 Test & Charge,

Hyosung Aquila CTEK MXS 5.0 Test & Charge,

Hyosung Aquila CTEK MXS 5.0 Test & Charge,

Hyosung Aquila CTEK MXS 5.0 Test & Charge,

Hyosung Aquila CTEK MXS 5.0 Test & Charge,

MXS 5.0 TEST AND CHARGE

Advanced charger with unique battery and alternator testing

The MXS 5.0 TEST & CHARGE combines an advanced micro-processor controlled battery charger with a battery and alternator test function to provide the ultimate in battery testing, charging and maintenance.
  • Technology

    Volt: 12V
  • Charging current: 5A max
  • Charger type: 8 step, fully automatic charging cycle with adjustable parameters
  • Battery capacity: 1.2–110Ah up to 160Ah for maintenance
  • Functions

    COLD/AGM: Charging in cold conditions and AGM batteries
  • RECOND: Recondition of deeply discharged batteries
  • Auto: Fully automatic for optimal charging
  • 12V: For all lead-acid batteries
  • Step 7: Fully charged battery
  • Step 8: Maintenance charging
  • BATTERY: Test battery voltage
  • START POWER: Test battery starting power
  • ALTERNATOR: Test alternator charging performance



Ctek Comfort Indicator Panel

Ctek Comfort Indicator Panel

This is a quick connector and indicator especially developed for panel mounting. The indicator clearly and simply shows the battery charge level.

The charger is connected to the socket on the panel, which makes charging convenient, practical and straightforward. Mount the panel and route the cable to the battery.
Comfort Indicator – Panel is available with two different cable lengths. Many vehicle panels have extra space on the panel, which can be used for this model.

Cable length: 150 cm
Eyelet terminal: M8 (8.4mm) on both models
Size connector/indicator: 35 mm x 21 mm 50 mm
Fuse: 15A
It is delivered with a 2-year warranty.



Comfort Indicator Eyelet
A practical combination of quick connector and indicator for those with batteries that are difficult to access.
The indicator shows the battery’s charge level simply and clearly.
The eyelet terminals are fitted to the battery, giving effortless connection without the need of actually reaching the battery.

Eyelet: M6 (6.4 mm)
Cable length: 55 cm
Fuse: 15A
It is delivered with a 2-year warranty.


Hyosung Aquila Comfort Indicator Panel and
Hyosung Aquila Comfort Indicator Eyelet
Hyosung Aquila CTEK MXS 5.0 Test & Charge


More info when i install it on the bike





Τρίτη, 11 Ιουνίου 2013

GV650 Headlamp Adjustments

GV650 Headlamp Adjustments


Screw No 1:

Left Right Adjustment

Screw No 2:

Up Down Adjustment

GV650 Headlamp Adjustments


GV650 Headlamp Adjustments

GV650 Headlamp Adjustments



Παρασκευή, 10 Μαΐου 2013

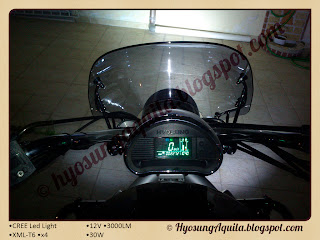

CREE XML-T6, 12V, 4x LED, 3000 Lumens, Waterproof

This is what i used on my Hyosung Aquila GV650 for extra lights. After i installed it, i found out that it is too strong and i decided to use it as running light!

One pair of lights (2pcs) + 2 clamps + 2 pairs waterproof connectors + one wireless dimmer.

(i) A single core CREE T6 led produce: 280LM @ 700mA & 910LM @ 3000mA

CREE Led Lights

  • XML-T6
  • 4x LED
  • 12V
  • 30W
  • 3000 Lumens
  • Waterproof

Cree Led Spot Lights

Cree Led Spot Lights

Cree Led Spot Lights

Cree Led Spot Lights

Cree Led Spot Lights

Cree Led Spot Lights

Cree Led Spot Lights

Video.
The lights are not Blue, it is from the video.



  • Ultra bright 4-LEDs waterproof spotlight
  • LED is CREE XML T6 x4
  • LED life span over 50000 hours
  • 4 LEDs of total 30W output, 3000 Lumens, 2.6Amps @ 12V
  • 55mm diameter x 66mm in length
  • Working voltage from 7VDC to 18VDC
  • Anodized black 6063 aluminum alloy light body
  • Equipped with a 304 stainless steel "L" bracket for flat surface mount
  • Also included an anodized aluminum alloy clamp for tube or handlebar mount
  • Variable clamp sizes from 22mm to 34mm (without rubber strip)
  • One rubber strip included for clamps mounting use
  • Wire length is approximately 41 inches
  • White wire positive & black wire negative
  • Comes with male and female waterproof connectors
  • Univsersal fit
  • Only for outdoor vehicles use, not suitable for indoor motionless application
  • Built-in protection, when internal temperature exceed 70C will automatically dim the light then resume after cool down
  • The wireless dimmer is a perfect add-on to run this light at a lower output when full power is not necessary or vehicle is not moving in order to keep the heat down



Πέμπτη, 4 Απριλίου 2013

GV650 Wind Shield

GV650 Hyosung Aquila Wind Shield

I have tried 2 different wind shields like this one, bigger, taller...

But finnaly i found out that the best off all is the original from Hyosung
GV650 Hyosung Aquila Wind Shield

GV650 Hyosung Aquila Wind Shield

GV650 Hyosung Aquila Wind Shield

GV650 Hyosung Aquila Wind Shield
